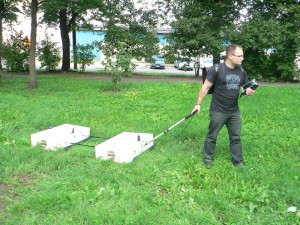

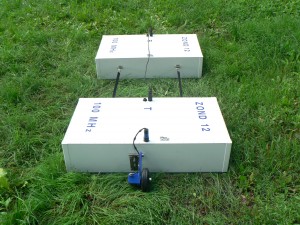

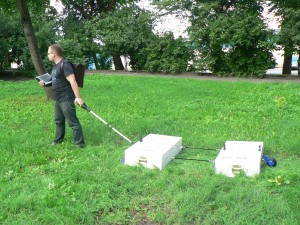

100 MHz antenna system shielded surface coupled
Specification:
Performance: separated transmitting and receiving
Input power: 0.35 A @ 12 V DC by cable from control unit
Dimension: 93x65x21 cm each
Weight: 12.5 kg each
Receiver sensitivity: 120 mcV
Receiver gain: 10 dB
Transmitter output: 400 V
Resolution and depth: 2.0 x 15-20 m*
* Relationship between resolution and sounding depth is assumed that sounding is made in a soil whose relative dielectric permittivity is equal to 4 and specific attenuation is 1 to 2 dB/m. Depth of investigation is understood to be detection depth of a flat boundary with reflectance equal to 1. Note that these data are rather approximate and are strongly dependent on parameters of the environment sounded.
Video

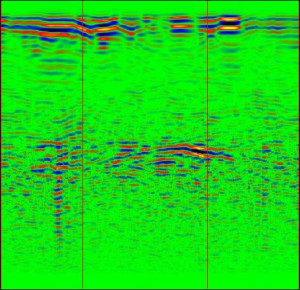

Examples
