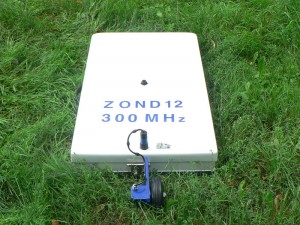

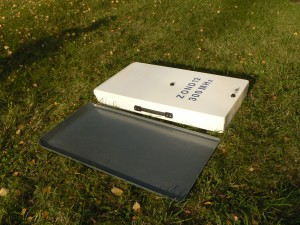

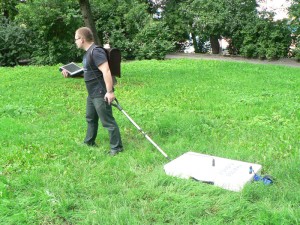

300 MHz antenna unit shielded surface coupled
Specification:
Input power: 0.35 A @ 12 V DC by cable from control unit
Dimension: 94x53x13 cm
Weight: 13.5 kg
Receiver sensitivity: 120 mcV
Receiver gain: 10 dB
Transmitter output: 400 V
Resolution and depth: 1.0 x 7-10 m*
* Relationship between resolution and sounding depth is assumed that sounding is made in a soil whose relative dielectric permittivity is equal to 4 and specific attenuation is 1 to 2 dB/m. Depth of investigation is understood to be detection depth of a flat boundary with reflectance equal to 1. Note that these data are rather approximate and are strongly dependent on parameters of the environment sounded.

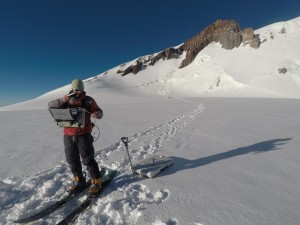

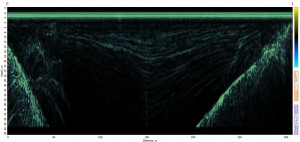

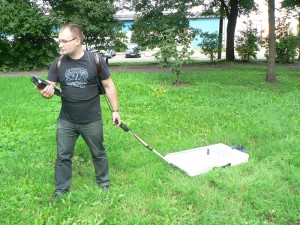

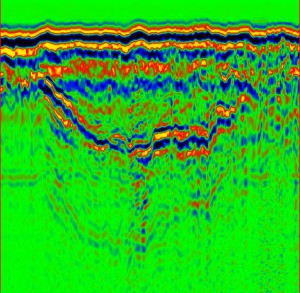

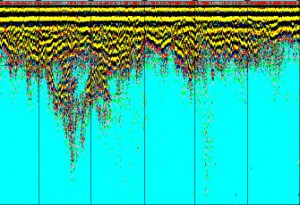

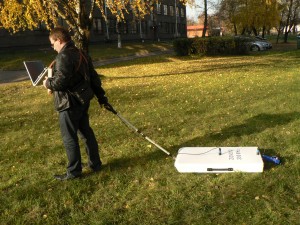

Examples
