Zond Aero 500 GPR
Specification:
Number of channels: 1
Frequency: 500 MHz
Performance: Single-unit GPR with built-in 500A antenna
The time range: 50-500 ns
Frequency of pulse repetition of transmitter: 113 KHz
Scan rate: 56
Samples per scan: 512
Filters: High pass Digital filter
Data transmission: through Ethernet or WiFi (in protective case) to PC
Dimension: 40x30x14.5 cm or 49x41x21 cm in protective case
Weight: 1.9 kg or 6.4 kg in protective case
Receiver sensitivity: 120 mcV
Receiver gain: 20 dB
Transmitter output: 50 V
Resolution and depth: 0.4 x 5-7 m*

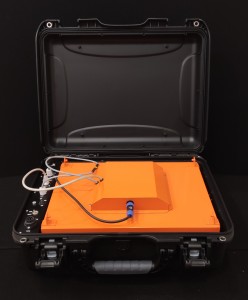

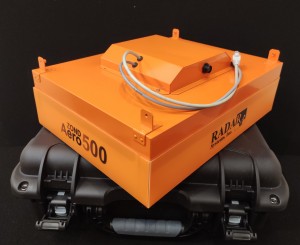

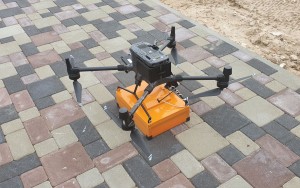

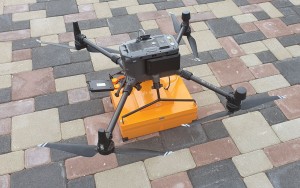

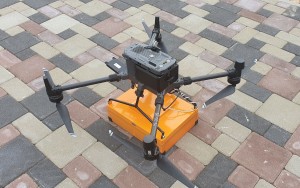

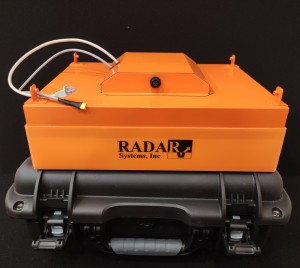

Zond Aero 500 is an ultra light weight single-unit GPR, specially designed for portable solutions. Device could be used as the standalone on-board equipment with the powering from external source and Ethernat cable connection or inside of the fully protective waterproof case with its own built-in Lithium-Ion battery and WiFi.
The user is getting a real-time information as a radiolocation profile (sometimes also referred to as radargram). Data are recorded on a hard disc for further use (processing, printout, interpretation, etc.) at the same time. You will see examples of radiolocation profiles here...
Zond Aero 500 has a built-in 500A antenna for single channel operation on the different time ranges.

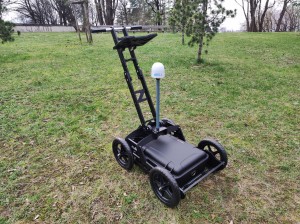

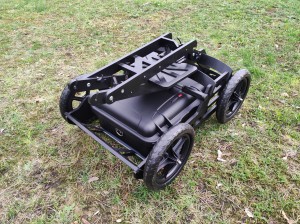

Zond Aero 500 could be equipped optionally by the shockproof cart.
All georadar parameters are computer controlled, therefore many hardware operation features are described here...
* Relationship between resolution and sounding depth is assumed that sounding is made in a soil whose relative dielectric permittivity is equal to 4 and specific attenuation is 1 to 2 dB/m. Depth of investigation is understood to be detection depth of a flat boundary with reflectance equal to 1. Note that these data are rather approximate and are strongly dependent on parameters of the environment sounded.
